Edgebander SPRINT 1329: Flexible for All Edging Trends - three High Performance Models

The SPRINT 1329 is a state-of-the-art multifunction machine

The edgebanding machine SPRINT 1329 provides multifunction technology at the highest level. Motor-driven adjustable axes are used for the entire machine. This HOLZ-HER edgebander thus allows conversion to precisely reproducible dimensions at the touch of a button, without having to open the machine hood.

The SPRINT 1329 is available in three high performance versions for complete processing of state-of-the-art edging and panel materials. This ensures flexibility for every new edging trend.

Our top seller "premium" model - with its dual motor corner rounding unit for edge thicknesses up to 15 mm and workpiece thicknesses up to 60 mm - satisfies all desires for processing flexibility . The “massive” version - with two cutter units - allows simple processing of solid wood edging with thicknesses up to 15 mm without changing tools. The “grooving” model has an NC-controlled, fully automatic, pivoting grooving unit.


Technical Details

iTronic for intelligent automation

Adaptive package for intelligent automation

iTronic operating components

1. Adaptive trimming blade

Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:

  • Always the right pressure for different types of edging
  • Prevents unnecessary vibration
  • Reduces wear

2. Adaptive pressure unit

The contact pressure of the individual pressure rollers is adapted perfectly to the application by an intelligent pneumatic system. Your advantages:

  • Reduces reject quotas to a minimum
  • Eliminate sample workpieces
  • Optimum machining results even for continuously changing applications

3. Automatic glue quantity control

Automatic, requirement-adapted control of glue quantity with program selection: Always optimum glue application for:

  • Various types of panels, e.g. chipboard or MDF
  • Various panel thicknesses
  • Various feed rates
  • EVA or PUR glue
  • Adaptation to processing parameters for glue from different manufacturers

4. Automatic cleaning routine

Integrated, fully-automatic purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine, full automatically, with the correct quantity of cleaner, at the right temperature and contact pressure. (Cleaning is required after 48 h = PUR reaction time).  Your advantages:

  • Best system on the market
  • PUR glue always under control
  • Avoids errors during cleaning operation

5.  Remaining glue quantity indicator

The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:

  • Operator knows how many running meters can still be produced at all times
  • Professional supervision of the cleaning process
  • Optimization of remaining quantity of glue in system at time of cleaning process.

EdgeControl - simple and intuitive

HOLZ-HER PC control - designed to meet the high standards of tomorrow

Edge Control

18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 18.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface

SYNCHRO edging feed

SYNCHRO edging feed
SYNCHRO edging feed
SYNCHRO edging feed

The edge feeders with SYNCHRO drive. With its synchronous adaptation to the feed rate, this feeder guarantees short intervals between workpieces and simultaneously optimizes edging protrusions.

Shallow feed angle thanks to nozzle design – easy feeding of solid wood edging up to 15 mm.

Jointing cutter

Jointing cutter
  • Including height adjustment for optimum utilization of cutters.

The most flexible glue application system on the market

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Visual zero joints with PUR glue – allowing use in wet areas – are natural for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Pressure unit
Pressure unit

Pressure unit with synchronous drive and automatic adaptation to feed rate. Straight and tapered pressure rollers for perfectly glued joints.

  • With NC servo-axis for motorized adjustment to specific edge thickness (optional).

Pneumatic trimming unit - 60 mm

Pneumatic trimming unit - 60 mm
Pneumatic trimming unit - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Flush cutting unit

Flush cutting unit up to 15 mm
Flush cutting unit up to 15 mm
Flush cutting unit up to 15 mm

High performance cutter unit for edge thickness up to 15 mm. Two NC servo-axes for cutting with and without edge protrusion (optional).

  • 15 mm edge thickness standard on SPRINT 1327 massiv and 1329 massiv.

Pneumatic cutter unit

Pneumatic cutter unit
Pneumatic cutter unit

Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-15 degrees. Including diamond tipped tools.
Further equipment: Integrated chip collection in tool, ProLock system.

  • Also available as option: Fully automatic control with four NC servo-axes and automatic pivot adjustment.

Multifunction cutter unit - 4 NC servo-axes

Multifunction cutter unit with 4 NC servo-axes
Multifunction cutter unit with 4 NC servo-axes
Multifunction cutter unit with 4 NC servo-axes

For flush, radius and chamfer cutting including permanently installed diamond tipped tool with patented Air Stream system.

  • Also available with optional fully automatic control with six NC servo-axes.

Copy cutter unit - 60 mm

Copy cutter unit
Copy cutter unit

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Diamond tipped tool for long service life.
  • Integrated chip collection in tool.
  • Working height of 60 mm.

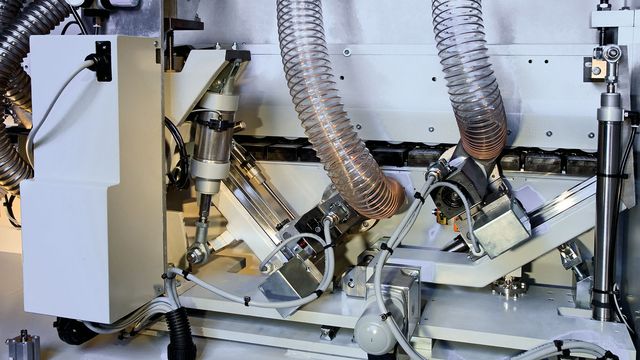

Shaping cutter unit with 4 NC servo-axes

Shaping cutter unit with 4 NC servo-axes
Shaping cutter unit with 4 NC servo-axes
Automatic pendulum sensor copies rear without material protrusion

Shaping cutter unit for corner rounding. Machining with two cutter motors for a wide variety of postforming profiles. Standard equipment includes four NC servo-axes as well as two diamond tipped cutters with CM technology and ProLock quick change chuck. Maximum workpiece thickness 60 mm.

  • Pendulum sensor
    Automatic pendulum sensor copies rear without material protrusion and leaves the optimum edge protrusion for the longitudinal edge for subsequent machining with the radius scraper.

Grooving unit

Grooving unit
Grooving unit

Clockwise direction. With two NC servo-axis for groove depth adjustment as well as groove position above control panel as a standard feature. Pivots 0 - 90 degrees including grid holes at increments of 11.25 degrees. Including plunge control.

Scraper unit

Scraper unit
Scraper unit

For perfect smoothing of radiuses and chamfers on plastic edging.

  • Also available with two NC servo-axes (optional).
  • High gloss package with four NC servo-axes (optional).

Flat scraper

Flat scraper
Flat scraper

Clean post-processing of surfaces. Application-controlled with two reversible blades, manual post-processing not required. Standard setup.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Buffing unit

Buffing unit
Buffing unit

Polishing for maximum gloss; for complete finishing. Standard setup.

Front and rear spraying units

Front and rear spraying units
Front and rear spraying units

Spraying units for parting agents and cleaning agents for feed and discharge area. Anti-static, coolant and lubricant – electronically controlled by special nozzles - for a perfect edge finishing.


Options for extension

Energy savings made easy

The intelligent ECO Mode energy management for HOLZ-HER edgebanders not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Are you still "rolling" glue or are you already saving?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more


References

The Slovakian Company Tomko swears by HOLZ-HER

Since 1989, the Slovakian Company Tomko has been manufacturing mass-produced furniture from laminated and veneered panels. The present production capacity and the company’s know-how are a guarantee for all business partners, who expect delivery and installation of high quality furniture at agreed times and quantities as well as flexibility in satisfying additional requirements.

Moreover, the furniture making shop provides its customers modern, cost-effective household furnishings tailored to their expectations by using custom processes and professional consultation during the furniture planning and production phases.

The company’s demanding projects are made possible by its state-of-the-art machinery. The TECTRA 6120 panel saw from HOLZ-HER is ideal for fulfilling the customers’ specific requirements. In addition, the cabinet making shop has a SPRINT 1329, also from the brand-name manufacturer HOLZ-HER. This machine was designed to meet the highest requirements in terms of quality and flexibility and offers many advantages. Among other things, the machine can be converted by program selection, without having to open the hood, so that it is always ready for production immediately. An EVOLUTION 7405 vertical CNC machining center completes the company’s excellently equipped machine pool.

From planning and consultation to production, delivery, assembly and service, the TOMKO Cabinet Making Shop is a reliable partner for high quality furniture.

Further images

Three HOLZ-HER machines for Tomko
Three HOLZ-HER machines for Tomko

HOLZ-HER and Zottler: Styrian Connection

The Zottler Cabinet Making Shop in Styrian, Austria, handles all types of classic construction and furniture making work. Their operations depend on machines from HOLZ-HER for universal applications.

[...] As a master cabinet maker, Zottler builds high quality furnishings for residential dwellings, hotels and restaurants as well as complete furnishings for retirement and nursing homes and student dormitories for customers in Austria, Germany and Switzerland. “Recently we just completed 250 kitchens as well as the complete room furnishings for student dormitories in Graz’s CoolCity [...] For the team with its 48 employees working like a small industrial mass-production shop in two-shift operation, failure of a machine would be disastrous. During the last 5 years a great deal of time has been spent developing efficient processes and a bundle of money invested in state-of-the-art machines to ensure that these processes run smoothly.

What brought you to HOLZ-HER? Zottler: "After the initial period nearly ten years ago, we were confronted with the decision whether to spend a lot of money to convert the old panel saw or just buy a new one right away. We made a foresighted decision. An existing contact recommended HOLZ-HER. And ever since that time, Zottler has invested regularly in new machines from the plant in Voitsberg, which is only an hour’s drive, “because when it comes to our essential machines, we only want one company to contact, who needs to be in the vicinity and offer true Austrian quality.” And if things ever get really critical, interjected Peter Gadi, Regional Sales Manager at HOLZ-HER and responsible for the projects at Zottler, we send a service technician to Passail immediately to solve the problem.

The extensive machine park from Holz-Her, now in use at the Zottler Cabinet Making Shop, covers all processing steps for mass-produced furniture, thus ensuring continuous work flow: [...]

Handicraft with passion for over 260 years

The carpenter Veser from Baden-Württemberg is highly satisfied with the training and the new edge banding machine Sprint

Starting just this week the new SPRINT 1329 Black Edition has been in operation at the Veser Carpentry Shop in Munderkingen, a small village on the Danube between Ulm and Sigmaringen. For more that 260 years the Veser Carpentry Shop has been working with wood. This master shop and its highly skilled craftsmen realize the specific desires and ideas of their customers, offering them standard as well as custom-tailored concepts. The specialties of this carpentry shop include windows and exterior doors, burglar-proofing on windows and doors as well as construction of winter gardens.

Purchase of the new SPRINT 1329 edgebander was the next step in the company’s progress to a successful future. The team at the carpentry shop was trained right in their own shop by a technical specialist from HOLZ-HER to ensure competent and efficient operation of the machine. This intensive training ensures that all employees are well equipped to continue to enthuse their customers with highest precision and perfect edging quality.

HOLZ-HER wishes maximum success with the new edgebander.

Further images

Highly satisfied with the new edge banding machine Sprint 1329: Joinery Veser from Munderkingen
Highly satisfied with the new edge banding machine Sprint 1329: Joinery Veser from Munderkingen
Highly satisfied with the new edge banding machine Sprint 1329: Joinery Veser from Munderkingen

Well prepared for the future with an edgebander from HOLZ-HER

great experience with a full-equipped SPRINT 1329 Black Editon

In 2016 The Endl Carpentry Shop in Winzer invested in a state-of-the-art HOLZ-HER edgebander to upgrade their machinery. Continuous investments in combination with their confidence in HOLZ-HER’s knowhow have made the Endl Carpentry Shop an excellently equipped facility and perfect contact partner for customers. The proprietor Roland Endl chose a SPRINT 1329 Black Edition Edgebander with full equipment.

The SPRINT 1329 offers a number of significant advantages for woodworking: On the one hand, the optimized “Glu Jet” application system allows automatic replenishment of the glue cartridges . This unique hybrid technology ensures trouble-free use of EVA and PUR adhesives while its short heat-up time of just 3 minutes and low energy consumption for remelting the glue make it a true resource saver. Concealed front edges, drawer bottoms, etc. can also be protected from moisture and damage with thin edging. Program selection allows the machine to be set up without even opening the hood, so that it is ready for production immediately.

45 years of experience in the area of edgebanders have made HOLZ-HER the leader. The results are worth seeing: invisible transition from panel to edging has made these edgebanders an essential part of the equipment at the Endl Carpentry Shop.

Precision edgebanding with the HOLZ-HER SPRINT

HOLZ-HER reference customer Vogt with Sprint 1329 edgebander

The Vogt Cabinet Making Shop is specialized in the area of custom furniture and interior finishing. This carpentry shop founded in 1955, has convinced its customers in Willstätt and the surrounding area of its quality and reliability in the meantime. The company commands an area of 800 square meters for planning, production and presentation of its products according to the specific ideas of its customers.

Among other factors, this cabinet making company believes investment in high performance machines to be a significant key to success. In 2016 the state-of-the-art machine pool at Vogt Cabinet Making Shop was supplemented by a SPRINT 1329 edgebander from HOLZ-HER. A primary advantage of the SPRINT 1329 is its simple handling, and the associated maximum degree of flexibility. It offers milling technology at the highest level and represents an important mainstay for this furniture producing company.

Further images

HOLZ-HER reference customer Vogt with Sprint 1329 edgebander

HOLZ-HER product portfolio as central production pillar

Binni is one of the leading companies in the Republic of Kosovo in the area of interior furnishings such as doors and windows. Over 200 employees work in a production area of 18,000 m2 with a capacity of more than 10,000 doors per year as well as over 5,000 kitchens per year. Every year more than 50 new product are introduced on the market. The company exports to various European countries such as Switzerland, Germany, Belgium or the Netherlands.

Binni was founded in 1989 and represents the continuation of a family tradition. The business model combines traditional Albanian wood and furniture craftsmanship with innovative processes and technologies meeting international standards.

This international standard is guaranteed by use of highly varying HOLZ-HER machines, for a majority of the company’s production. In addition to two horizontal panel saws, the company uses a vertical EVOLUTION 7405 CNC and a PRO-MASTER 7125 CNC machining center. A SPRINT 1327 edgebander is also in use. The HOLZ-HER machines are a significant production factor, which have become indispensable for this major company’s everyday business.

The video pictured shows an except from Binni’s image video. The complete video can be view at the Binni Youtube Channel.

Exceptional master piece with HOLZ-HER machines

Holzher reference - experience with panel saws, CNC machining, edgebanding

The Feine Möbel Carpentry and Furniture Making Shop in Guntersblum, Germany, works under the motto “A warm, friendly residential atmosphere is always the interaction of its many parts”. It is therefore important to encourage customers to realize their own ideas and support them with maximum professional competency in designing their home while providing them the necessary craftsmanship.

For perfect production of the furniture, the company uses a CUT series horizontal panel saw, a PRO-MASTER CNC machining center and a SPRINT series edgebander, all from HOLZ-HER. With these HOLZ-HER machines, the carpentry shop has ensured maximum quality and precision for its customers since 2003.

In addition to handling customer orders, the carpentry shop’s junior proprietor used the HOLZ-HER machines to produce his masterpiece for the Master Carpenters’ School in Schwetzingen, Germany. This masterpiece is a piece of corridor furniture made of elm wood with painted finish and printed glass inserts. The original character of this masterpiece resulted in its inclusion in the Online Portal of the Cabinet Maker and Carpentry Shop Magazine, BM Online.

Further images

Positive experience with HOLZ-HER saws, edgebanders, CNC machines
Experience with machines from HOLZ-HER - super price/benefit ratio, super quality

Greater flexibility with edging

Positive experience with HOLZ-HER machines - edgebanders, edgebanding machines, edge banding

Automobile manufacturers are not the only ones offering hybrid systems. For example, cabinet maker Michael Schaaf put his confidence in HOLZ-HER edgebanders capable of processing polyurethane (PUR) as well as ethylene vinyl acetate (EVA) with minimum change-over times.

Michael Schaaf has dedicated his life to cabinet making. His range of specialization comprises the entire width of interior finishing work including custom pieces of furniture and furnishings for kitchen and bath as well as construction of outdoor patios and even includes small, but very exclusive furnishings for shops. His fondness for extraordinary custom work finds its expression in a very special field of endeavor: Interior appointments in custom trailers and campers. "This is all custom work", he explains and adds: "As a rule, we do two trailers or campers a year - this is a niche where we feel comfortable. We also repair the interiors of these vehicles. “And the work on these vehicles is usually very time-consuming. “At least two employees work four to five weeks on a single job of this type”, he emphasizes. "Moreover, relatively small pieces of furniture is used here, which requires a great deal of time for production. For example, I completely equipped a camper with appointments with a high gloss finish, including the floorboards."

  • Text and title picture: Gerd Fahry | HOB 5-2014

Further images

References from satisfied HOLZ-HER customers - edgebanders
References from satisfied HOLZ-HER customers - edgebanders
References from satisfied HOLZ-HER customers - edgebanders
