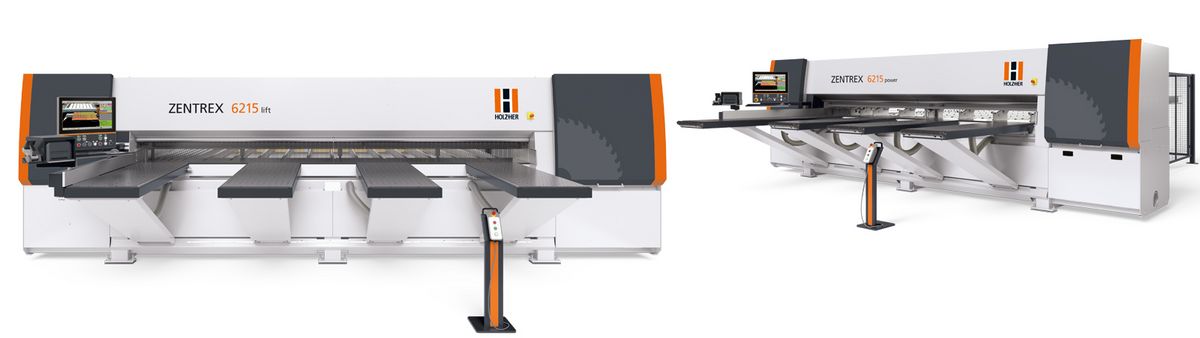

ZENTREX 6215 Series Panel Saws: The power package among the HOLZ-HER pressure beam saws

The ZENTREX 6215 horizontal panel saw demonstrates the highly stable machine construction you expect from HOLZ-HER. Unique on the market: The high quality linear guide technology installed on all axes.

Infinite keyway and saw blade protrusion up to 130 mm and fixed main motor with power up to 25 kW qualify this machine to take its place in industrial production as well as craft shops. The large, 180 mm prescoring saw with drive power of 2.2 kW as well as the electrical fine adjustment including tool position memory satisfy all desires. The entire sawing unit can also be equipped with speed control for further applications.

The absolute highlight on the ZENTREX 6215 is the newly developed 2-stage evacuation management system. Cutting-plan-controlled evacuation flaps in the pressure beam, which open or close depending on the length of the cut, increase the evacuation capacity at the saw blade, ensuring a clean machine table.

With scratch cuts, a controlled, moving evacuation hood behind the saw blade catches chips and dust flying away to the rear during the cutting operation. This also ensures a clean support surface for scratch cuts.

For panel sizes, whose length is difficult to differentiate from its width in spite of 3D simulation, the ZENTREX 6215 now offers a laser positioning system with accuracy down to the millimeter. The great advantage: Remeasuring panels or incorrect positioning in the machine is a thing of the past. And the program-controlled, double lateral pressure system is also a standard feature on the ZENTREX 6215.

All machines

HOLZ-HER ZENTREX 6215 power

The horizontal pressure beam saw ZENTREX 6215 power is the high-performance cutting solution for high throughput

The power package for high performance cutting

  • Saw Blade Protrusion: 130 mm
  • Sawing Unit: up to 25 kW
  • Cutting Lengths: up to 5800 mm
  • Cutting Widths: up to 4,250 mm
Detail page  ZENTREX 6215 power

HOLZ-HER ZENTREX 6215 lift

The horizontal pressure beam saw ZENTREX 6215 lift with standard lifting table for batch processing

With elevating table for stack cutting as standard feature

  • Precision lifting table as standard feature
  • Saw Blade Protrusion: 130 mm
  • Sawing Unit: up to 25 kW
  • Cutting length: 4,300 mm
  • Cutting width: 4200 mm
Detail page  ZENTREX 6215 lift

HOLZ-HER ZENTREX 6215 dynamic

The horizontal pressure beam saw ZENTREX 6215 dynamic is the high-performance cutting solution with connection to plate storage systems

For automated charging in combination with panel storage system

  • Prepared for charging solutions
  • Saw Blade Protrusion: 130 mm
  • Sawing Unit: up to 25 kW
  • Cutting Lengths: up to 5,800 mm
  • Cutting Widths: up to 6,500 mm
Detail page  ZENTREX 6215 dynamic
