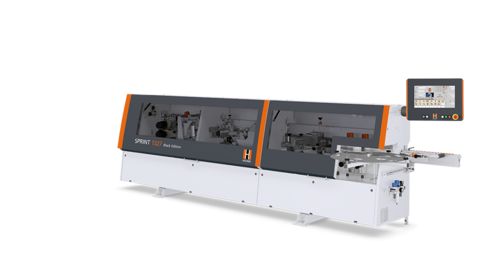

Edgebander SPRINT 1327: Maximum Productivity - Variable Feed and Shortest Workpiece Intervals

Maximum productivity - variable feed and shortest workpiece intervals

Every unit on the new SPRINT 1327 is distinguished by its precision processing. All possible equipment versions are perfectly matched to one another and designed for maximum endurance and feed rates.

Standard features include variable feed from 10 - 18 m/min as well as automatic pressure beam adjustment. An edge feeder with synchronous drive and pressure unit are also standard features.

The SPRINT 1327 offers you two models. The SPRINT 1327 classic includes complete equipment for jointing, corner rounding and finishing work. The SPRINT 1327 massiv is equipped with two cutter units (instead of one corner rounding unit) for easy processing of solid wood edging with a thickness up to 15 mm without changing tools.


Technical Details

EdgeControl - simple and intuitive

HOLZ-HER PC control - designed to meet the high standards of tomorrow

Edge Control

18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 18.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface

Adaptive package for intelligent automation

Adaptive package for intelligent automation

The optimized, automatic control for the extensive pressure adjustments with plausibility checks allows HOLZ-HER to realize automatic glue quantity control matched to the specific requirements. Moreover, an adaptive trimming blade automatically adapts the pressure of the trimming blade to the edge thickness. Finally, an adaptive pressure unit optimally adjusts the pressures of the individual pressure rollers to the specific application for perfect results every time. This reduces adjustment errors and reject quotas to a minimum.

  • [1] Automatic glue quantity control
  • [2] Adaptive trimming blade
  • [3] Adaptive pressure unit

SYNCHRO edging feed

SYNCHRO edging feed
SYNCHRO edging feed
SYNCHRO edging feed

The edge feeders with SYNCHRO drive. With its synchronous adaptation to the feed rate, this feeder guarantees short intervals between workpieces and simultaneously optimizes edging protrusions.

Shallow feed angle thanks to nozzle design – easy feeding of solid wood edging up to 15 mm.

Jointing cutter

Jointing cutter
  • Including height adjustment for optimum utilization of cutters.

Maximum flexibility with 6-fold edging feed

Simple handling – high flexibility with 6-fold edging feed
Simple handling – high flexibility with 6-fold edging feed
Simple handling – high flexibility with 6-fold edging feed

The automatic 6-fold edge feeder offers the advantage of flexibility to users with continuously changing edging material as well as those using the same edging continuously. The automatic chute change feature ensures that edging is aways available, saving you valuable set-up time. Including a seventh auxiliary chute for cut-length edging as well as a 6-fold edging carriage with arresting universal rollers.

Pressure unit

Pressure unit
Pressure unit

Pressure unit with synchronous drive and automatic adaptation to feed rate. Straight and tapered pressure rollers for perfectly glued joints.

  • With NC servo-axis for motorized adjustment to specific edge thickness (optional).

Pneumatic trimming unit - 60 mm

Pneumatic trimming unit - 60 mm
Pneumatic trimming unit - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Pneumatic cutter unit

Pneumatic cutter unit
Pneumatic cutter unit

Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-15 degrees. Including diamond tipped tools.
Further equipment: Integrated chip collection in tool, ProLock system.

  • Also available as option: Fully automatic control with four NC servo-axes and automatic pivot adjustment.

Flush cutting unit

Flush cutting unit up to 15 mm
Flush cutting unit up to 15 mm
Flush cutting unit up to 15 mm

High performance cutter unit for edge thickness up to 15 mm. Two NC servo-axes for cutting with and without edge protrusion (optional).

  • 15 mm edge thickness standard on SPRINT 1327 massiv and 1329 massiv.

Multifunction cutter unit - 4 NC servo-axes

Multifunction cutter unit with 4 NC servo-axes
Multifunction cutter unit with 4 NC servo-axes
Multifunction cutter unit with 4 NC servo-axes

For flush, radius and chamfer cutting including permanently installed diamond tipped tool with patented Air Stream system.

  • Also available with optional fully automatic control with six NC servo-axes.

Copy cutter unit - 60 mm

Copy cutter unit
Copy cutter unit

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Diamond tipped tool for long service life.
  • Integrated chip collection in tool.
  • Working height of 60 mm.

Shaping cutter unit with 4 NC servo-axes

Shaping cutter unit with 4 NC servo-axes
Shaping cutter unit with 4 NC servo-axes
Automatic pendulum sensor copies rear without material protrusion

Shaping cutter unit for corner rounding. Machining with two cutter motors for a wide variety of postforming profiles. Standard equipment includes four NC servo-axes as well as two diamond tipped cutters with CM technology and ProLock quick change chuck. Maximum workpiece thickness 60 mm.

  • Pendulum sensor
    Automatic pendulum sensor copies rear without material protrusion and leaves the optimum edge protrusion for the longitudinal edge for subsequent machining with the radius scraper.

Scraper unit

Scraper unit
Scraper unit

For perfect smoothing of radiuses and chamfers on plastic edging.

  • Also available with two NC servo-axes (optional).
  • High gloss package with four NC servo-axes (optional).

Flat scraper

Flat scraper
Flat scraper

Clean post-processing of surfaces. Application-controlled with two reversible blades, manual post-processing not required. Standard setup.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications.

Buffing unit

Buffing unit
Buffing unit

Polishing for maximum gloss; for complete finishing. Standard setup.


Options for extension

Energy savings made easy

The intelligent ECO Mode energy management for HOLZ-HER edgebanders not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Are you still "rolling" glue or are you already saving?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more


References

The Slovakian Company Tomko swears by HOLZ-HER

Since 1989, the Slovakian Company Tomko has been manufacturing mass-produced furniture from laminated and veneered panels. The present production capacity and the company’s know-how are a guarantee for all business partners, who expect delivery and installation of high quality furniture at agreed times and quantities as well as flexibility in satisfying additional requirements.

Moreover, the furniture making shop provides its customers modern, cost-effective household furnishings tailored to their expectations by using custom processes and professional consultation during the furniture planning and production phases.

The company’s demanding projects are made possible by its state-of-the-art machinery. The TECTRA 6120 panel saw from HOLZ-HER is ideal for fulfilling the customers’ specific requirements. In addition, the cabinet making shop has a SPRINT 1329, also from the brand-name manufacturer HOLZ-HER. This machine was designed to meet the highest requirements in terms of quality and flexibility and offers many advantages. Among other things, the machine can be converted by program selection, without having to open the hood, so that it is always ready for production immediately. An EVOLUTION 7405 vertical CNC machining center completes the company’s excellently equipped machine pool.

From planning and consultation to production, delivery, assembly and service, the TOMKO Cabinet Making Shop is a reliable partner for high quality furniture.

Further images

Three HOLZ-HER machines for Tomko
Three HOLZ-HER machines for Tomko

HOLZ-HER and Zottler: Styrian Connection

The Zottler Cabinet Making Shop in Styrian, Austria, handles all types of classic construction and furniture making work. Their operations depend on machines from HOLZ-HER for universal applications.

[...] As a master cabinet maker, Zottler builds high quality furnishings for residential dwellings, hotels and restaurants as well as complete furnishings for retirement and nursing homes and student dormitories for customers in Austria, Germany and Switzerland. “Recently we just completed 250 kitchens as well as the complete room furnishings for student dormitories in Graz’s CoolCity [...] For the team with its 48 employees working like a small industrial mass-production shop in two-shift operation, failure of a machine would be disastrous. During the last 5 years a great deal of time has been spent developing efficient processes and a bundle of money invested in state-of-the-art machines to ensure that these processes run smoothly.

What brought you to HOLZ-HER? Zottler: "After the initial period nearly ten years ago, we were confronted with the decision whether to spend a lot of money to convert the old panel saw or just buy a new one right away. We made a foresighted decision. An existing contact recommended HOLZ-HER. And ever since that time, Zottler has invested regularly in new machines from the plant in Voitsberg, which is only an hour’s drive, “because when it comes to our essential machines, we only want one company to contact, who needs to be in the vicinity and offer true Austrian quality.” And if things ever get really critical, interjected Peter Gadi, Regional Sales Manager at HOLZ-HER and responsible for the projects at Zottler, we send a service technician to Passail immediately to solve the problem.

The extensive machine park from Holz-Her, now in use at the Zottler Cabinet Making Shop, covers all processing steps for mass-produced furniture, thus ensuring continuous work flow: [...]

Handicraft with passion for over 260 years

The carpenter Veser from Baden-Württemberg is highly satisfied with the training and the new edge banding machine Sprint

Starting just this week the new SPRINT 1329 Black Edition has been in operation at the Veser Carpentry Shop in Munderkingen, a small village on the Danube between Ulm and Sigmaringen. For more that 260 years the Veser Carpentry Shop has been working with wood. This master shop and its highly skilled craftsmen realize the specific desires and ideas of their customers, offering them standard as well as custom-tailored concepts. The specialties of this carpentry shop include windows and exterior doors, burglar-proofing on windows and doors as well as construction of winter gardens.

Purchase of the new SPRINT 1329 edgebander was the next step in the company’s progress to a successful future. The team at the carpentry shop was trained right in their own shop by a technical specialist from HOLZ-HER to ensure competent and efficient operation of the machine. This intensive training ensures that all employees are well equipped to continue to enthuse their customers with highest precision and perfect edging quality.

HOLZ-HER wishes maximum success with the new edgebander.

Further images

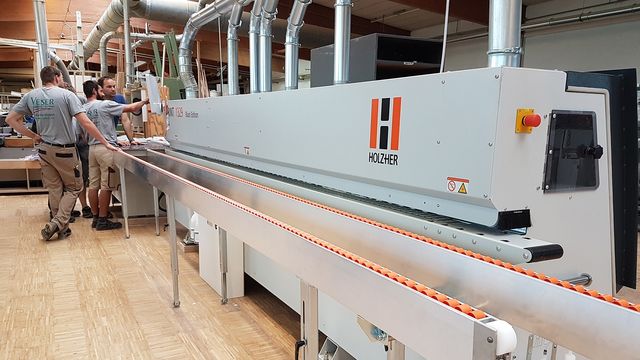

Highly satisfied with the new edge banding machine Sprint 1329: Joinery Veser from Munderkingen
Highly satisfied with the new edge banding machine Sprint 1329: Joinery Veser from Munderkingen
Highly satisfied with the new edge banding machine Sprint 1329: Joinery Veser from Munderkingen

Well prepared for the future with an edgebander from HOLZ-HER

great experience with a full-equipped SPRINT 1329 Black Editon

In 2016 The Endl Carpentry Shop in Winzer invested in a state-of-the-art HOLZ-HER edgebander to upgrade their machinery. Continuous investments in combination with their confidence in HOLZ-HER’s knowhow have made the Endl Carpentry Shop an excellently equipped facility and perfect contact partner for customers. The proprietor Roland Endl chose a SPRINT 1329 Black Edition Edgebander with full equipment.

The SPRINT 1329 offers a number of significant advantages for woodworking: On the one hand, the optimized “Glu Jet” application system allows automatic replenishment of the glue cartridges . This unique hybrid technology ensures trouble-free use of EVA and PUR adhesives while its short heat-up time of just 3 minutes and low energy consumption for remelting the glue make it a true resource saver. Concealed front edges, drawer bottoms, etc. can also be protected from moisture and damage with thin edging. Program selection allows the machine to be set up without even opening the hood, so that it is ready for production immediately.

45 years of experience in the area of edgebanders have made HOLZ-HER the leader. The results are worth seeing: invisible transition from panel to edging has made these edgebanders an essential part of the equipment at the Endl Carpentry Shop.

Precision edgebanding with the HOLZ-HER SPRINT

HOLZ-HER reference customer Vogt with Sprint 1329 edgebander

The Vogt Cabinet Making Shop is specialized in the area of custom furniture and interior finishing. This carpentry shop founded in 1955, has convinced its customers in Willstätt and the surrounding area of its quality and reliability in the meantime. The company commands an area of 800 square meters for planning, production and presentation of its products according to the specific ideas of its customers.

Among other factors, this cabinet making company believes investment in high performance machines to be a significant key to success. In 2016 the state-of-the-art machine pool at Vogt Cabinet Making Shop was supplemented by a SPRINT 1329 edgebander from HOLZ-HER. A primary advantage of the SPRINT 1329 is its simple handling, and the associated maximum degree of flexibility. It offers milling technology at the highest level and represents an important mainstay for this furniture producing company.

Further images

HOLZ-HER reference customer Vogt with Sprint 1329 edgebander

HOLZ-HER product portfolio as central production pillar

Binni is one of the leading companies in the Republic of Kosovo in the area of interior furnishings such as doors and windows. Over 200 employees work in a production area of 18,000 m2 with a capacity of more than 10,000 doors per year as well as over 5,000 kitchens per year. Every year more than 50 new product are introduced on the market. The company exports to various European countries such as Switzerland, Germany, Belgium or the Netherlands.

Binni was founded in 1989 and represents the continuation of a family tradition. The business model combines traditional Albanian wood and furniture craftsmanship with innovative processes and technologies meeting international standards.

This international standard is guaranteed by use of highly varying HOLZ-HER machines, for a majority of the company’s production. In addition to two horizontal panel saws, the company uses a vertical EVOLUTION 7405 CNC and a PRO-MASTER 7125 CNC machining center. A SPRINT 1327 edgebander is also in use. The HOLZ-HER machines are a significant production factor, which have become indispensable for this major company’s everyday business.

The video pictured shows an except from Binni’s image video. The complete video can be view at the Binni Youtube Channel.

Exceptional master piece with HOLZ-HER machines

Holzher reference - experience with panel saws, CNC machining, edgebanding

The Feine Möbel Carpentry and Furniture Making Shop in Guntersblum, Germany, works under the motto “A warm, friendly residential atmosphere is always the interaction of its many parts”. It is therefore important to encourage customers to realize their own ideas and support them with maximum professional competency in designing their home while providing them the necessary craftsmanship.

For perfect production of the furniture, the company uses a CUT series horizontal panel saw, a PRO-MASTER CNC machining center and a SPRINT series edgebander, all from HOLZ-HER. With these HOLZ-HER machines, the carpentry shop has ensured maximum quality and precision for its customers since 2003.

In addition to handling customer orders, the carpentry shop’s junior proprietor used the HOLZ-HER machines to produce his masterpiece for the Master Carpenters’ School in Schwetzingen, Germany. This masterpiece is a piece of corridor furniture made of elm wood with painted finish and printed glass inserts. The original character of this masterpiece resulted in its inclusion in the Online Portal of the Cabinet Maker and Carpentry Shop Magazine, BM Online.

Further images

Positive experience with HOLZ-HER saws, edgebanders, CNC machines
Experience with machines from HOLZ-HER - super price/benefit ratio, super quality

Greater flexibility with edging

Positive experience with HOLZ-HER machines - edgebanders, edgebanding machines, edge banding

Automobile manufacturers are not the only ones offering hybrid systems. For example, cabinet maker Michael Schaaf put his confidence in HOLZ-HER edgebanders capable of processing polyurethane (PUR) as well as ethylene vinyl acetate (EVA) with minimum change-over times.

Michael Schaaf has dedicated his life to cabinet making. His range of specialization comprises the entire width of interior finishing work including custom pieces of furniture and furnishings for kitchen and bath as well as construction of outdoor patios and even includes small, but very exclusive furnishings for shops. His fondness for extraordinary custom work finds its expression in a very special field of endeavor: Interior appointments in custom trailers and campers. "This is all custom work", he explains and adds: "As a rule, we do two trailers or campers a year - this is a niche where we feel comfortable. We also repair the interiors of these vehicles. “And the work on these vehicles is usually very time-consuming. “At least two employees work four to five weeks on a single job of this type”, he emphasizes. "Moreover, relatively small pieces of furniture is used here, which requires a great deal of time for production. For example, I completely equipped a camper with appointments with a high gloss finish, including the floorboards."

  • Text and title picture: Gerd Fahry | HOB 5-2014

Further images

References from satisfied HOLZ-HER customers - edgebanders
References from satisfied HOLZ-HER customers - edgebanders
References from satisfied HOLZ-HER customers - edgebanders

Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

Brochure SPRINT Series (PDF, 4 MB)

Technical data

Open table
