CNC machining center PRO-MASTER 7122: Universal All Rounders with four Interpolating Axes

Universal all rounders with four interpolating axes

The powerful efficiency of the PRO-MASTER 7122 CNC machining center is impressive. Particularly the PRO-MASTER 7122 can easily handle even difficult machining jobs on solid wood and special materials.

Solid design and maximum flexibility are the hallmarks of the PRO-MASTER 7122. They are even already preconfigured for effective pendular processing. The comprehensive standard features include six consoles with 16 stops (front and rear stop rows), a drilling head with grooving saw and traveling disk tool changer.

The 11-kW power spindle with ceramic bearings including fully interpolating C axis can be upgraded up to 16 kW for extremely machining jobs.


Technical Details

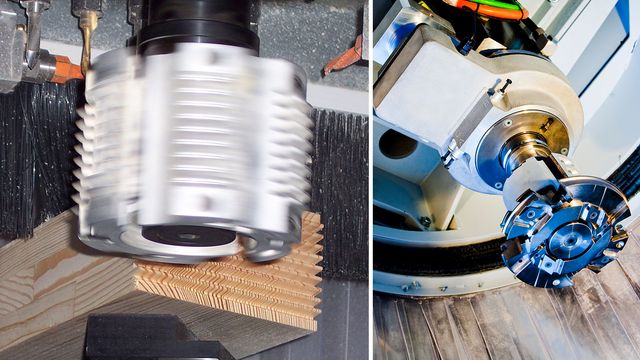

Powerful cutter units

Powerful cutter units

Precise cutting spindles with ceramic bearings ensure optimum cutting results. Whether with 11 kW or 16 kW for extreme cutting performance, HOLZ-HER offers the ideal spindle for your range of applications.

CabinetControl - for programming your furniture simply

Simple furniture programming
The high quality, user-friendly machine control from HOLZ-HER
Generates CNC machining program automatically at the touch of a button

CabinetControl – software for simple furniture designing

Our high quality, user-friendly HOLZ-HER machine control system is an integral part of the machine’s design. The equipment package includes CAMPUS / NC Hops with office and machine license and full-fledged aCADemy CAD software. The integrated CabinetControl Base furniture design software rounds out this premium package. This offer provides the prerequisites for effective machining and convenient operation with barcode interface, manual control unit, import features and much more.

  • CabinetControl Base included as standard feature in software package.
  • Design of furniture.
  • Views can be represented in 2D or 3D.
  • Quick adaptation to individual desires of furniture buyers.
  • Perfect presentation of furniture.
  • Automatic completion of cutting plans.
  • Generates CNC machining program automatically at the touch of a button.
  • An optional professional version, the CabinetControl PRO, is also available with library, calculation, data transfer to pressure beam saws, etc.
  • Also ideal for planning kitchens and rooms.

Integrated drilling head

Optional integrated drilling head

The PRO-MASTER is perfectly equipped with variable drilling heads.

16-Spindle version (standard)

  • Drilling unit with 10 vertical spindles (X = 6 / Y = 4)
  • Six horizontal spindles (two double drilling spindles in X direction / one in Y direction).
  • Integrated grooving saw in X direction.
  • The pressure booster included as a standard feature provides even more power for the drilling unit.

24-Spindle version (optional)

  • Drilling unit with 18 vertical spindles (X = 11 + 2 / Y = 6)
  • Six horizontal spindles (two double drilling spindles in X direction / one in Y direction).
  • Integrated grooving saw in X direction.
  • The pressure booster included as a standard feature provides even more power for the drilling unit.

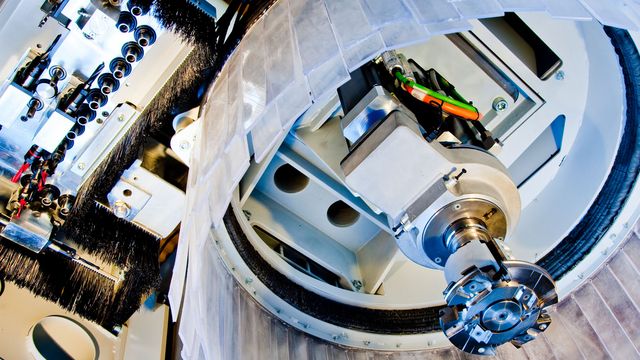

Machining head - optimized for practice

Drilling, sawing, cutting, grooving – the PRO-MASTER machining head

Drilling, sawing, cutting, grooving – the machining head on the PRO-MASTER series is equipped for multifunctional use and is perfect for rational production of simple and complex case parts in continuous operation.

The integrated and compact design makes this machining head a paragon for dynamic action, acceleration and positioning accuracy. Even in the basic equipment, the PRO-MASTER series offers a wide machining spectrum.

Standard console table

Standard console table
125 millimeter high suction cups
Pneumatic lifting and lowering charging aids

Console table – the workpiece support for optimum work progress

Precise machining requires exact and secure positioning of the workpieces. For this purpose, the PRO-MASTER series is equipped with a console table. It offers maximum flexibility in all areas of machining; even workpieces with complicated shapes can be clamped quickly and easily.

  • Solid consoles with single circuit vacuum system, six easily movable cross-members – with pneumatic clamping feature in X direction. Both right-handed and left-handed users can easily operate the consoles pneumatically at the touch of a button.
  • Measuring tapes in the X direction for quickly positioning consoles, laser pointers for precise position of suction cups. Other consoles and suction cups available as options.
  • 125 Millimeter high suction cups provide machining head with sufficient clearance on all sides.
  • Moving stops, eccentric in hardened guide bushings. Stops can be lowered pneumatically.
  • Four pneumatically operated charging aids can be raised and lowered to position heavy workpieces easily. Additional charging aids available as options.
  • Two large surface pushbuttons for clamping.
  • Side consoles for storing suction cups not required at the moment.
  • Additional processing fields for higher capacity (optional).
  • Individually switchable vacuum zones prevent vacuum losses.
  • High performance vacuum pumps – 100 m³/h.
    Optional: Vacuum pumps for 140 m³/h and 250 m³/h.

Highly flexible machining tables

Highly flexible machining tables
Highly flexible machining tables
Highly flexible machining tables

X-MOVE table

Standard features on the X-MOVE table include six consoles with two suction cups each. The consoles are moved automatically, optionally with arrow buttons, in the X direction to the positions programmed on the control.

  • Six consoles, positionable in a motor-driven manner via a rack-and-pinion drive on hardened linear guides. (additional X-MOVE consoles available as optional features)
  • Variable for equipping with suction cups or frame clamps.

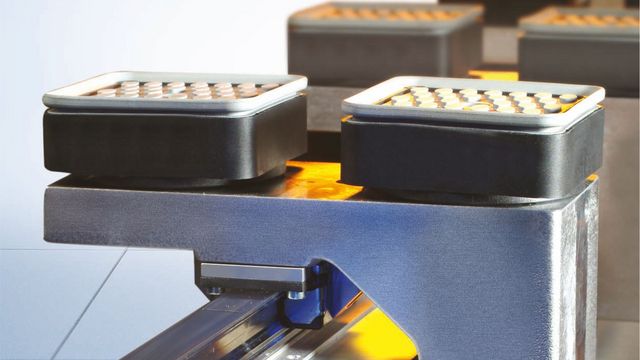

VARIO table

Standard features include six consoles, each having three displaceable suction cups. The entire working table can be changed over within a few seconds. Consoles and suction cups are positioned automatically via the control system.

  • Six consoles, positionable in a motor-driven manner via a rack-and-pinion drive on hardened linear guides.
  • In each case, three suction cup mounts per console, in each case one vacuum suction cup with sensing valve (second vacuum suction cup available as an option).
  • Suction cup holders positionable in a motor-driven manner via a rack-and-pinion drive on hardened linear guides (other suction cup holders available as options).

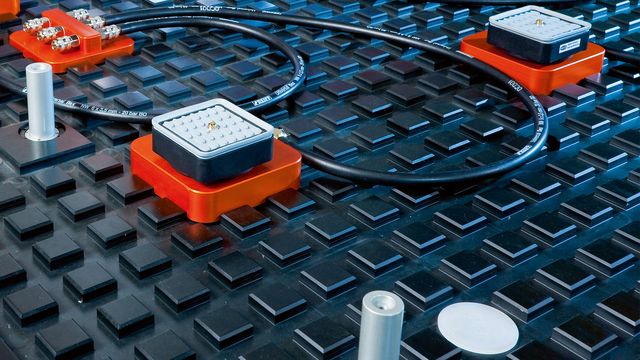

High-flow nesting table

Nesting technology for rational production. With the nesting process, a porous protective panel – usually a thin MDF panel – is held down on the machine table by a vacuum. It provides a large surface for suction and serves to support the workpieces to be processed. Nesting technology allows optimized processing and cutting of panel materials.

  • For formatting nesting cutting plans on the nesting table.
  • Workpieces can be processed with manually positioned suction cups.
  • The HOLZ-HER nesting table has small matrix dimensions – of only 50 mm – to ensure maximum vacuum flux over the entire table surface.

Well-thought-through workpiece clamping

Variable system of matching workpiece clamps

CNC machining centers are becoming ever more efficient with the use of intelligent software combined with proven technology. One-piece complete production is now the measure of all things. All parts must be produced to the highest quality standards and with all conceivable processes in a single pass. The concept of "more product capability" opens new horizons. In addition, CNC machining also ensures the resurrection of traditional woodworking joints. Where earlier manual methods involved high-cost processes and large tolerances, these days it's only a matter of a few clicks of the mouse and complex joints are created to the highest levels of precision. In this way, mortised frame doors and swallow-tailed connections are being rediscovered.

Variable system of matched suction cups and workpiece clamps for surface machining including straight and curved frame parts.

Intelligent solid wood machining

Perfectly equipped for custom and highly varying machining

The PRO-MASTER 71 and 72 series offers virtually unlimited possibilities for machining. Constructed for the most highly demanding work, the solid and well-thought-out construction of both machines represents the latest in modern and application-friendly industrial design.

The extreme machining lengths in the X direction make the console table on the CNC machining centers ideal for machining long parts such as components for stairs, winter gardens, etc. Even large door components can be machined in a highly efficient and trouble-free manner in pendular operation. With 1,400 mm or 1,600 mm in the Y direction as well as a Z stroke of 565 mm, both of these machine series are perfectly equipped for individual and highly variable machining operations.

Plenty of space for all tools.

Traveling disk tool changer with 12 or 18 tool positions
14 or 16-position linear tool changer
Plenty of space for a wide variety of tools

The traveling disk tool changer with 12 or 18 tool positions ensures short changeover times and maximum productivity. A special pick-up tool changer is available for saw blades with dia. up to 350 mm.

Another supplementary feature is a pick-up tool changer with two positions for large angle gears as well as 14 or 16-position linear tool changer for an extensive range of tools.

Tool-intensive applications, such as are frequently required for window construction, are also possible with an optional shuttle type tool changer with up to 60 tool positions.

Innovative changeover units

Changeover units for highly varying applications

Your advantage for high product quality

A variety of changeover units for highly varying applications is available for all machines in the PRO-MASTER series. These range from conventional multi-spindle machines, lock box and sawing units to special applications such as hollow cutting chisels and cutting units for machining foam materials, etc.

Angular slewing gears with angle display and central angle adjustment are available for precision angle cuts and holes.

Lock case cutters for professional door production

Lock case cutters for professional door production
Effective machining on door and frame components

Lock case cutting

High performance cutting motors on the optional horizontal cutter unit make the PRO-MASTER series a must for professional door producers. On the 5-axes version, this work is of course accomplished by the cutter unit.

  • HOLZ-HER also offers a wide matching selection of reliable, high performance changeover units for all types of applications.

Laser pointers as standard feature

Laser pointers on left and right of machining head
Laser pointers on left and right of machining head
Laser pointers on left and right of machining head

Laser pointers for exact position of the suction cups or for tracing the workpiece contours, attached on the right and left sides of the machining head.

Contour laser – the complete positioning solution

Contour laser – the complete positioning solution
Contour laser – the complete positioning solution

Contour laser – projects entire workpiece contour and all required vacuum suction cups simultaneously as well as all console positions without limitation for number of lines to be projected.

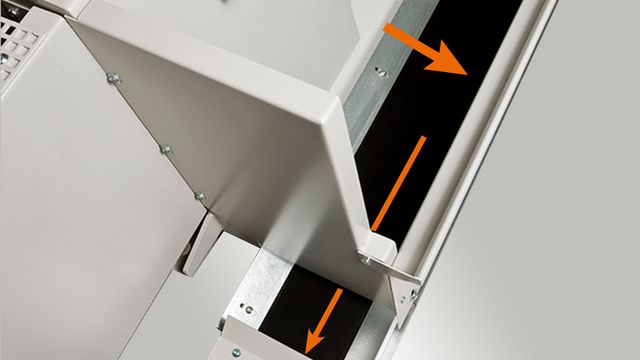

High performance chip conveyor

High performance chip conveyor

For removing high quantities of chips when machining solid wood. This keeps the workplace around the CNC machine clean.

Variable safety concepts

3-field foot mats or safety bumpers

State-of-the-art safety concepts give you the choice between patented 3-field foot mats or safety bumpers. This allows you to match the HOLZ-HER machining centers individually and reliably to your operating situation.

Efficient vacuum technology

Extremely powerful and efficient vacuum pumps
ECO VAC

Extremely high performance, efficient vacuum pumps ensure workpiece is held securely. These low maintenance, dry-running pumps are also distinguished by their low noise emissions and extremely low maintenance requirements.

Moreover, our intelligent ECO VAC vacuum control uses a software program to ensure that the required vacuum power is always present when several pumps are used.

Flexible evacuation

Flexible evacuation – programmable for eight positions

Flexible evacuation – programmable for eight positions

Fully automatic positioning in eight positions on machining head, for perfect adaptation of hood to workpiece height. This guarantees optimum evacuation of chips.


Options for extension

Energy savings made easy

The intelligent ECO MODE energy management for HOLZ-HER CNC machines not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum efficiency with Holz-Her machine networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more
