New Multi-Function Tool Technology for HOLZ-HER Edgebanders

05/11/2015

At the Ligna in Hannover HOLZ-HER will be demonstrating its fully automatic multiple function tool technology on two machines simultaneously. These integrated features include everything from cutter units to shaping cutters and radius scrapers. These fully automatic attachments will be installed on the Accura 1554 automatic as well as the Lumina 1586 premium.

The multi-function package allows profiles to be changed at the touch of a button without even opening the machine hood. The multi-function tools are installed on the newly developed HOLZ-HER units with clearance-free mechanism as well as the latest generation of fully digital NC servo-technology with positioning accuracy of 5/1,000 mm. All totaled 20 of these axes provide for complete automation on the three attachment units.

This allows profile conversions with various radiuses, bevels or flushing cutting without setup work, for fast and profitable work.

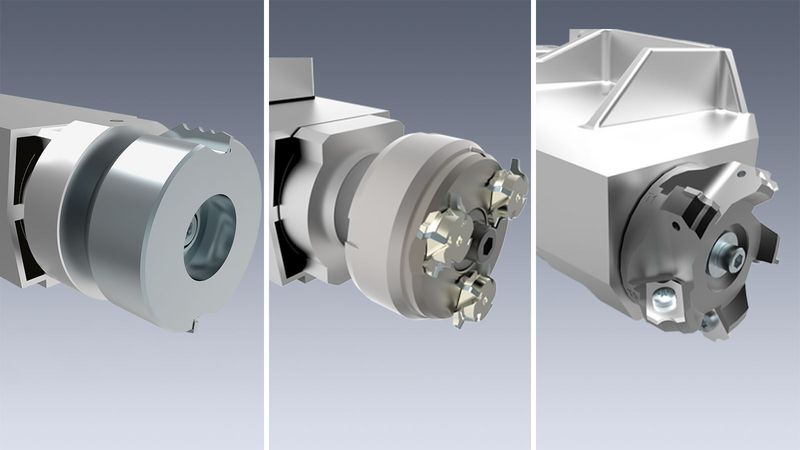

The cutter unit has a multiple stage diamond tool with flush cutter for up to 8 mm as well as 3 different radiuses and 45° bevel.

The intelligent diamond turret tool has three different profiles. This patented tool from the Leitz company will be introduced at this year's Ligna New Equipment Forum by Leitz under the name "quattroForm".

Finally it is possible to attach the multi-function radius scraper unit with fully automatic 5-fold revolving tool magazine allowing use of five different standard HW scraping tools.
