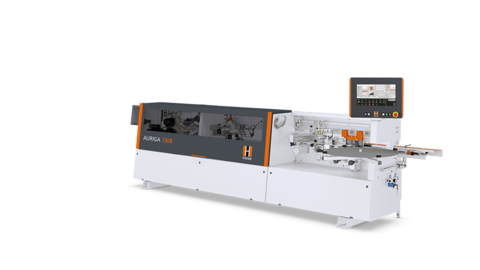

Edgebander AURIGA 1308: Highest degree of automation with two finishing units

Highest degree of automation with two finishing units

Efficient and automatic complete processing at a professional level while remaining compact and affordable.

Set-up processes with state-of-the-art NC servo-axes, making it unnecessary to open the machine hood. With the AURIGA 1308 (two finishing units), HOLZ-HER has met this challenge. One reason why this machine is one of our top sellers. The high sales volume makes it possible to offer this machine at an unbeatable price/benefit ratio.

Prices
x

Different requirements - different prices

The price of a HOLZHER machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your HOLZHER expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local HOLZHER expert will be happy to discuss all further details with you.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.

Technical Details

iTronic for intelligent automation

iTronic for intelligent automation

iTronic operating components

1. Adaptive trimming blade

Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:

  • Always the right pressure for different types of edging
  • Prevents unnecessary vibration
  • Reduces wear

2. Adaptive pressure unit

The contact pressure of the individual pressure rollers is adapted perfectly to the application by an intelligent pneumatic system. Your advantages:

  • Reduces reject quotas to a minimum
  • Eliminate sample workpieces
  • Optimum machining results even for continuously changing applications

3. Automatic glue quantity control

Automatic, requirement-adapted control of glue quantity with program selection: Always optimum glue application for:

  • Various types of panels, e.g. chipboard or MDF
  • Various panel thicknesses
  • Various feed rates
  • EVA or PUR glue
  • Adaptation to processing parameters for glue from different manufacturers

4. Automatic cleaning routine

Integrated, fully-automatic purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine, full automatically, with the correct quantity of cleaner, at the right temperature and contact pressure. (Cleaning is required after 48 h = PUR reaction time).  Your advantages:

  • Best system on the market
  • PUR glue always under control
  • Avoids errors during cleaning operation

5.  Remaining glue quantity indicator

The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:

  • Operator knows how many running meters can still be produced at all times
  • Professional supervision of the cleaning process
  • Optimization of remaining quantity of glue in system at time of cleaning process.

EdgeControl - simple and intuitive

HOLZ-HER PC control - designed to meet the high standards of tomorrow

Edge Control

18.5" Touch screen color monitor with 16:9 format. High performance control with simply operation for rational machine set-up and change-over.

  • 18.5" touch screen color monitor - standard feature.
  • Graphic user interface, all information displayed in plain text and/or graphic form.
  • Simple operation – rotating and swiveling control panel at eye height.
  • Programs are simple to call with program names and numbers.
  • Large program memory for all desired applications.
  • Individual selection of units with the functions as basic setting possibilities for nominal values, path points and tool corrections.
  • Service reports in clear text.
  • Individual management for up to ten users with password protection and individual authorization.
  • Network connectivity.
  • Online maintenance, rapid exchange of data with HOLZ-HER service department.
  • Barcode interface

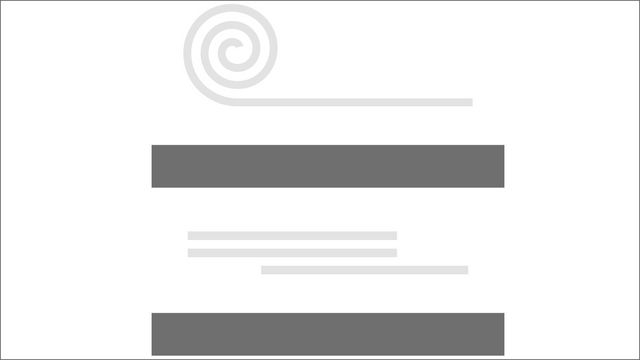

Edging feed

Edging feed
Edging feed

Fully automatic, user-friendly feed of cut-length and coiled edging; conversion without tools. Gentle material handling with transport belts for edge feeding and light barrier for edging recognition.

Jointing cutter unit - 45 (60) mm

Jointing cutter

Cut edges often have small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with ProLock quick-change flange. Including height adjustment for optimum utilization of cutters.

  • Optionally available with working height of 60 mm.

The most flexible glue application system on the market

Heat-up, glue change and cleaning require only 3 minutes each

No other glue application system offers this flexibility with this energy efficiency and cleanliness. HOLZ-HER thin film technology makes this gluing system an all rounder for craftsmen and industrial users. Visual zero joints with PUR glue – allowing use in wet areas – are natural for HOLZ-HER customers.

Starting with the state-of-the-art, high gloss edging right up to solid wood edging with extremely high cross sections, HOLZ-HER remains unequaled in terms of appearance, regardless of the material. HOLZ-HER sets the trends for tomorrow today.

Pressure unit

Pressure unit
Pressure unit

High quality 3-roller pressure unit for pressing edging against panel cleanly and forcefully. First roller with motor drive and pneumatic application control. Two subsequent pressure rollers.

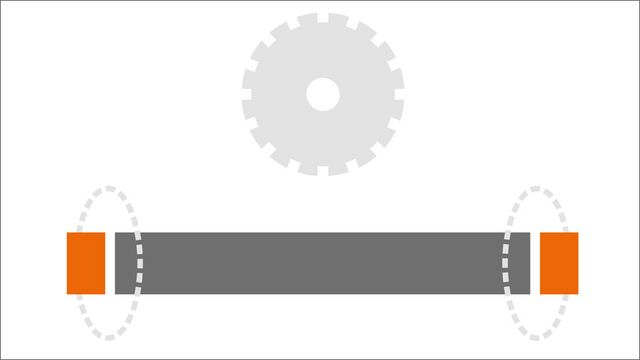

Pneumatic trimming unit - 60 mm

Pneumatic trimming unit - 60 mm
Pneumatic trimming unit - 60 mm

For straight or chamfered trimming on thin edging; a standard feature allows this unit to be pivoted to 10 degrees pneumatically. High quality version with stable cast iron pillars.

Sawing motors each with two guides for precisely trimming off protruding edging.

Cutter unit - pivoting

Pneumatic cutter unit
Pneumatic cutter unit

Multifunction cutter unit for flush cut on edging with thickness up to 8 mm, radiuses up to 3 mm, pivots 0-5 degrees. Including diamond tipped tools.

Further equipment:

  • Integrated chip collection in tool.
  • ProLock system.

Copy cutter unit - 60 mm

Copy cutter unit
Copy cutter unit

Corner rounding unit for processing corners with edge thickness up to 3 mm. Tools for radiuses up to 3 mm and chamfers up to 45 degrees – postformed profiles possible.

  • Diamond tipped tool for long service life.
  • Integrated chip collection in tool.

Scraper unit

Scraper unit
Scraper unit

Perfect finish – generous finishing area.

  • For perfect smoothing of radiuses or chamfers on plastic edging.
    Also available with four NC servo-axes

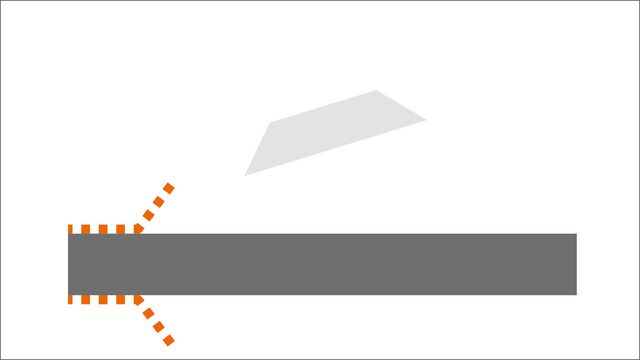

Flat scraper with plunge control

Flat scraper
Flat scraper

Perfect finishing – generous post-machining area for up to three finishing units (depending on model).

  • The application-controlled flat scraper removes all glue residues, which are then blown off the panel by the integrated blast nozzles.

Flat scrapers with pre and post-sensing

Flat scrapers with pre and post-sensing for edgebanding

Clean surface finishing with pre- and post-sensing for high feed rates. 2 HW cutting edges, for use on 4 sides. Completely eliminates all manual finishing. Both units can be lifted automatically for special applications. Can be selected optionally in lieu of the standard buffing unit.

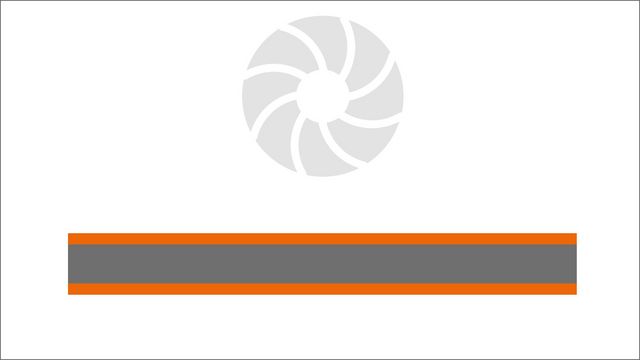

Buffing unit

Buffing unit
Buffing unit

Perfect finishing – generous post-machining area for up to three finishing units (depending on model).

  • Polishing for maximum gloss; for complete finishing.

Technical Details

Energy savings made easy

The intelligent ECO Mode energy management for HOLZ-HER edgebanders not only helps preserve our environment - it also saves you money.

Learn more


An integrated network of machines ensures production with maximum efficiency

Maximum Efficiency with Holz-Her Machine Networking

HOLZ-HER realizes your production ideas within 20 minutes from the first mouse click to finished furniture with seamless machine networking.

Learn more


Are you still "rolling" glue or are you already saving?

Are You Already Saving?

Are you still "rolling" glue or are you already saving? Savings of up to € 1,000 / year with our patented Glu Jet nozzle system.

Learn more


References


Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

AURIGA brochure (PDF, 3 MB)

Technical data
